TLS – TRUCK LOADING
SYSTEM
Innovative solution for efficient loading

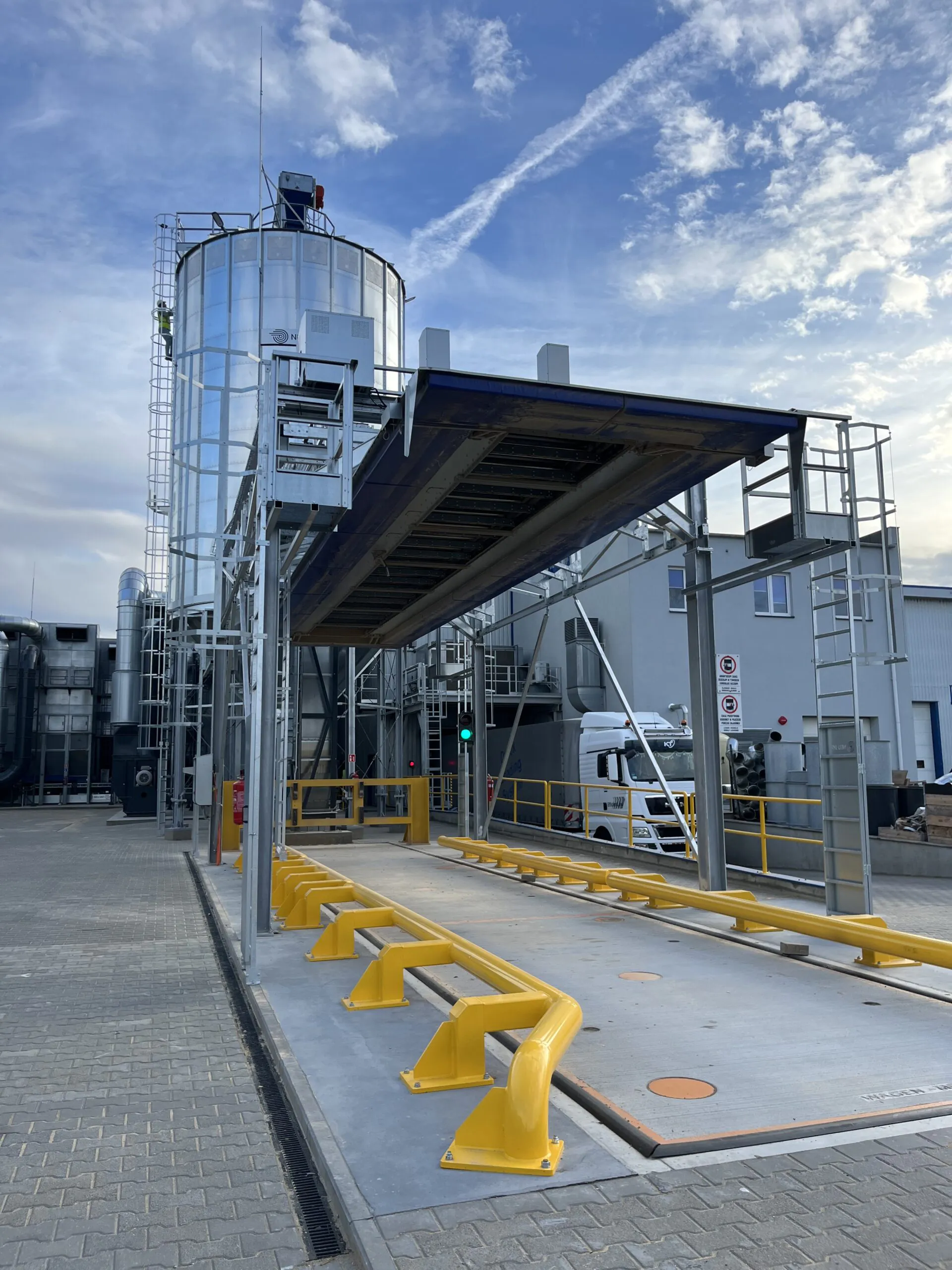

TLS is a high-tech installation designed for loading trucks with moving floor trailers. The system is distinguished by a modern approach, the highest safety standards and full automation, making it an indispensable solution in industries requiring fast, precise and safe loading of bulk materials.
Benefits of TLS
Security
Integrated security systems minimize the risk of equipment damage and protect users during the loading process.
Effectiveness
Rapid loading and an automatic leveling system increase operational efficiency and reduce downtime.
Automation
Comprehensive visualization of the loading process on a 7-inch control panel allows full control of the system in both automatic and manual (service) modes.
System characteristics
⦁ Hydraulic lowering and lifting system – Provides smooth, controlled and safe loading.
⦁ Automatic bolt locking system for parking mode – Guarantees stability and safety when parked.
⦁ Hydraulic brake – Adjusts the position of the loading system, ensuring precision and safety.
⦁ Trailer edge detection sensors – Prevents damage to the trailer and allows full control of the loading process.
⦁ Detection of chain breakage in the conveyor – Immediately detects faults, ensuring continuous operation.
⦁ Trailer fill sensor – Allows precise calibration against trailer capacity.
⦁ Advanced control system – Automatic and manual control capability with visualization on a panel in the control cabinet.
⦁ Resistance to harsh conditions – Operating temperature range of -20°C to +50°C.
Dimensions adapted to trailers with a movable floor:
⦁ Length – Approx. 13,500 mm
⦁ Width – Approx. 2,470 mm
⦁ Height – Approx. 2,700 mm
⦁ High capacity – Maximum loading volume is 90 m³.
⦁ Charging time – Full load in just 1 hour.
TLS – A comprehensive solution for demanding applications
With its innovative design and advanced features, TLS supports efficient bulk material logistics, ensuring safety, precision and efficiency. It’s a system that addresses today’s industry challenges, raising standards in automation and reliability. Contact us to learn how TLS can improve your company’s processes.
